Web Engineering

about me

  • Mathis Zeiher
  • Software Engineer @SICK AG
  • In the field for way too long...

All the slides are available here: @https://mzeiher.github.io/webengineering/

pull requests are highly appreciated 😀 @mzeiher/webengineering

what about you?

Course Goals

professional expertise

Die Studierenden setzen die erarbeiteten Theorien und Modelle in Bezug zu ihren Erfahrungen aus der beruflichen Praxis und können deren Grenzen und praktische Anwendbarkeit einschätzen.

methodological expertise

Die Studierenden sind mit Abschluss des Moduls in der Lage, für weitgehend standardisierte Anwendungsfälle in der Praxis die angemessene Methode auszuwählen und anzuwenden. Sie kennen die Stärken und Schwächen der Methode in ihrem beruflichen Anwendungsfeld und können diese in konkreten Handlungssituationen gegeneinander abwägen

Social and personal experise

Die Studierenden können sowohl eigenständig, also auch im Team zielorientiert und nachhaltig handeln

Overview of existing technologies in webengineering

Able to say "it depends..." and pick the tools which suit the best for the job

Able to look things up (no one expects from you that you know everything)

Wild ride through heaps of technologies

Fun while learning

Outlook to the future

whats not in the course

Fanboiism/Fangirlism

Thoughtleadership

Framework/Technology wars

disclaimer

Comments are highly subjective

Interesting people to follow

Interesting videos to watch

Interesting links to read

Interesting repositories

good resources

Mozilla Developer Network

Chrome Webcast

caniuse.com

web.dev

twitter.com

what?

introduction

Who is who (w3c, CSSWG, WHATWG, WICG, ES262, TC39 and others)

History of webengineering

Engines (blink, webkit, quantum (mozilla))

HTML

Basics

HTML5 syntax

Elements

ARIA

CSS

the CSS cascade, selectors and specificity

positioning

layout models (box model, inline/block, float, flex and grid)

containing blocks, block formatting context, stacking context

animations

media queries

DOM/CSSOM

Document Object Model, DOM manipulation, EventTarget, ShadowDom, Custom Elements

style attribute

CSS object model, Constructable StyleSheets, CSS Modules

javascript

ES262 basics

Editions (es3, es5, es6, es2015-2019)

Module system (>=es6)

JS object model, functions, class and prototype inheritance, "this" (scope and lexical this) explained

javascript - advanced

functional and oo paradigm for programming

Arrays (map/reduce) Arrays and ArrayLike

Promises/async/await

Generator functions and iterators

Typescript/Flow/ReasonML

the javascript event loop explained (micro/macro task)

communication protocols

HTTP, HTTP/2, HTTP/3 (QUIC)

REST (GraphQL) (XMLHttpRequest, fetch)

CORS, security concepts

Websockets

WebRTC

backend technologies and stacks

Node (JS) (Apollo for GraphQL, epxress)

JavaEE (Spring Boot)

Go/Rust

PHP

Ruby

LAMP (Linux Apache MySQL PHP)

MEAN/MERN (mongoDB, express, angular, node)

backend technologies and stacks

Databases NoSQL, SQL, Document Stores, Big Table

"Serverless" Gatsby, Next, Zeit,

SSR (https://developers.google.com/web/updates/2019/02/rendering-on-the-web)

frameworks and libraries

General overview over the most popular frameworks, how they work and differences

(p)react (class based and hooks (also how they work ;))

Angular

vue3, svelte, Stencil

lit-html/hyper-html/lighter-html

security and authentication

OWASP

XSS, Injection, secure store

CORS, CSP

OAuth/OpenID, JWT, HTTP Basic, HTTP Digest, Cookies

modern js tool chain

modern javascript development needs its own tool chain to organize small and large projects, enabling shiping the best bundle for customers and increase developer experience

debugging (source maps)

Webpack/Rollup/Snowpack bundlers

babel

testing - karma/selenium, jest, jasmine, mocha

advanced topics

Worklets (parallelism), ServiceWorker (PWA, notification triggers, CRDTs https://medium.com/@amberovsky/crdt-conflict-free-replicated-data-types-b4bfc8459d26), CSS Houdini (paintlets), Audiolets

Rendering techniques (Server Side Rendering, Client Side Rendering and everything in between)

WebGL/WebGPU

advanced topics

Project FUGU APIs (WebUSB, WebSerial, WebFileAPI, ShareAPI, ContactAPI, Object Recognition API, etc)

React Native, Electron for writing client applications/apps

Webassembly (WASM, WASI)

Tools needed

Text Editor/IDE
vscode, sublime, textmate, JetBrains Webstorms, etc...

Browser
Latest Chrome, Firefox or Safari

Node.js
>= 14.0.0

Docker
usage of WSL2 on Windows recommended

lets start...

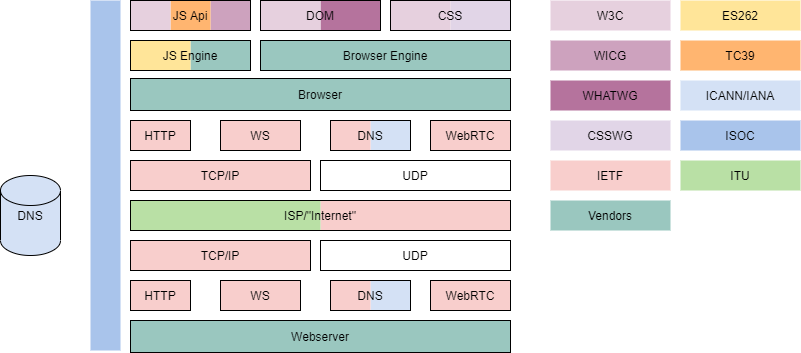

who is who

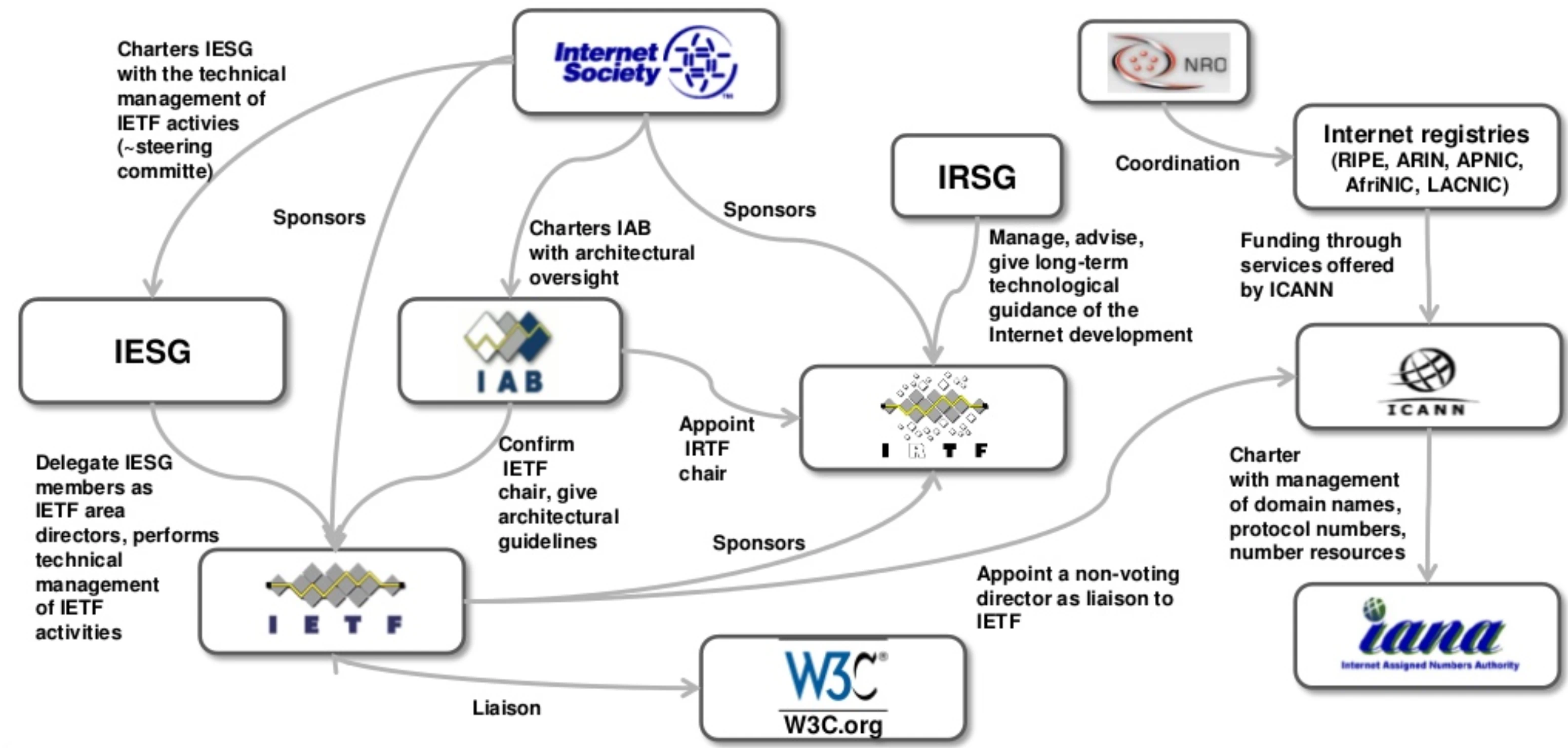

  • https://www.slideshare.net/PeterREgli/internet-organization

w3c

The World Wide Web Consortium (W3C) is an international community that develops open standards to ensure the long-term growth of the Web.

WebRTC, Websocket Protocol API/IDL (Protcol itself by IETF)

Publishes drafts which are agreed upon in the WICG

Does a lot more... semantic web, web of things, etc

w3c - CSSWG

CSS Working Group

Brings us all the nice things

Animation, Layouting

The how in a HTML page

CSS Houdini

w3c - WHATWG

Web Hypertext Application Technology Working Group

Advances the HTML specification

The what in a HTML page

Reason why we don't need jQuery anymore (DOM APIs)

w3c - WICG

Web Incubator Community Group

Participation of implementors for new APIs/Technologies

WebUSB, WebBluetooth, WebRTC, Serviceworker, Orientation API all originated here, once enough traction the RFC will move to w3c

Warning! take it with a grain of salt

ES262/ECMA International

European Computer Manufacturers Association

Releases annual Language Specification

Provides es262 test suite for js engine implementers

Javascript is not the only implementation of ES262, Actionscript is also one

ECMA - TC39

Proposes/Specifies new Langauge features

Consists of implementers, developers, academics...

ICANN

Internet Corporation for Assigned Names and Numbers

Supports and maintains the databases for namespaces and numbers in the internet

Introduces and manages top level domains

Saved us from the .org sale (see ISOC)

ICANN - IANA

Internet Assigned Numbers Authority

Manages DNS Root Zone

Manages IP Addresses, autonomous systems numbers, Internet Protocol numbers/symbols and ports

Delegates name registering to local registries (RIRs) (RIPE, ARIN, APNIC, etc)

IETF

Internet Engineering Task Force

Responsible for the technical side of the internet

HTTP/1 -/2 -/3, HTTPS

TCP/IP

Serializations like CBOR

ITU

International Telecommunication Union

Brought us nice things like ASN.1, X509 (used in TLS/Certificates)

ISOC

Internet Society

Tries to hold it all together

Brought us the .org sale "scandal"

the internet

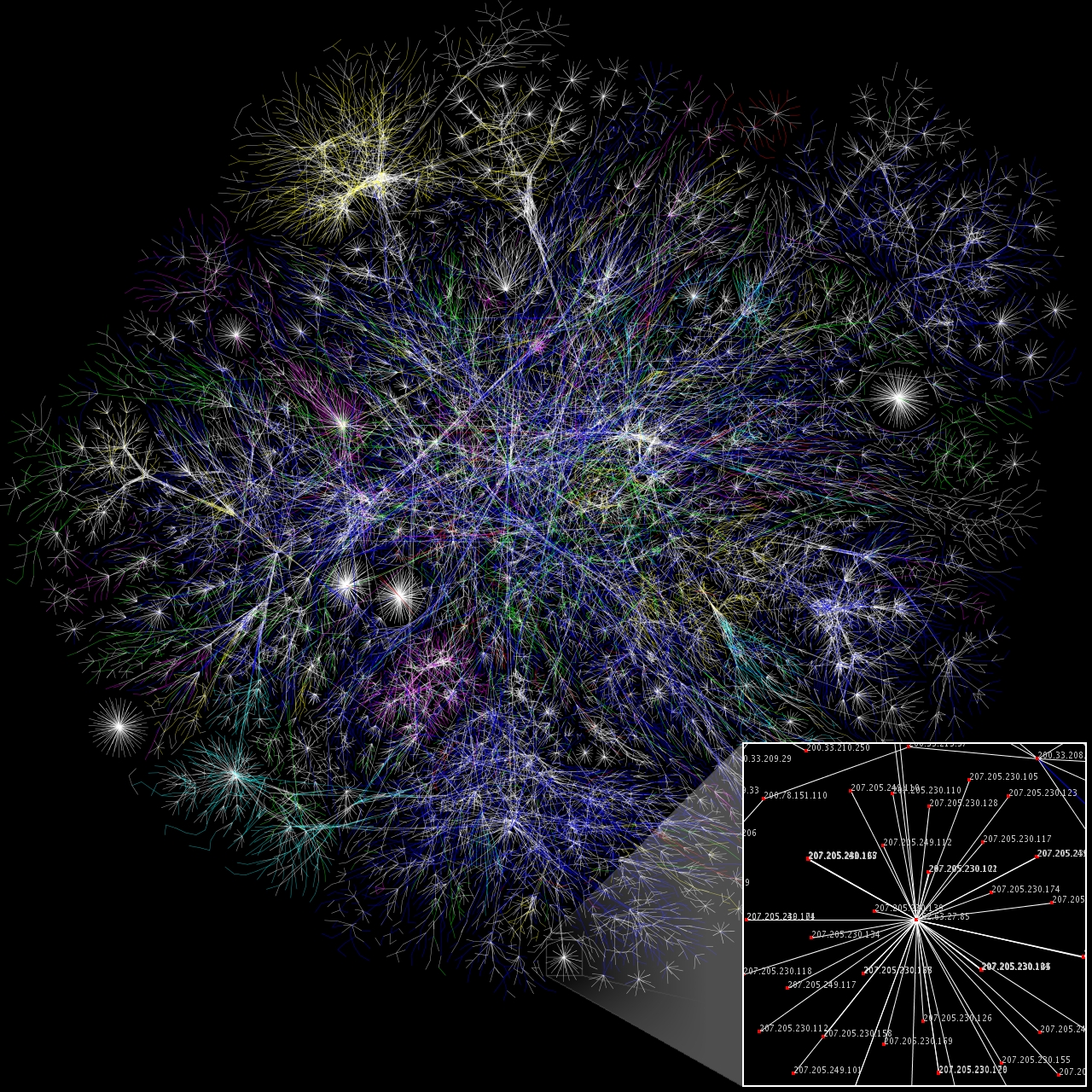

Internet is the global system of interconnected computer networks that uses the Internet protocol suite (TCP/IP) to communicate between networks and devices. It is a network of networks
- Wikipediahttps://en.wikipedia.org/wiki/Internet

what is the internet

IP based, package switched inter connected network

Belongs to no-one, but governed by ISOC et all.

The www is only an application on top of the internet

providers

Providers provide the access to the internet, maintain automated systems and are interconnected via IXP (e.g DE-CIX)

providers

providers

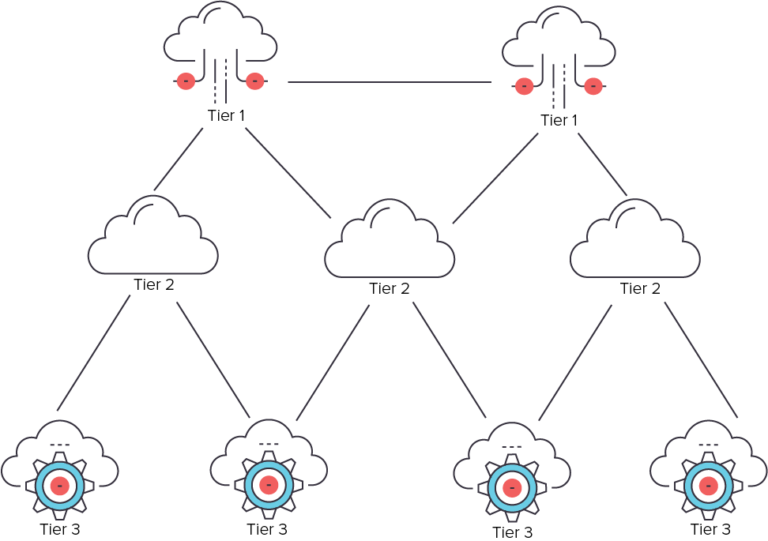

Tier 1
AT&T, Century Link (Level3), Deutsche Telecom (Only exchange traffic with other Tier 1 providers)

Tier 2
Vodafone, Comcast, Local telcos (deliver internet traffic to end customers)

Tier 3
small and local ISPs

osi

Application
7 Application HTTP, TLS
6 Presentation ASN.1
5 Session PPTP
Transport
4 Transport TCP, UDP
Internet
3 Network Layer IP
Network Access
2 Data Link Layer IEEE 802.X
1 Physical Layer IEEE 802.X, RS-232, ...

DNS

Domain Name System

Translates domain names into IP addresses

DNS

http://www.google.com

=

v6/2a00:1450:4001:802::200e v4/172.217.18.174

ip

Internet Protocol

ip

ip

THE Protocol used for routing on the internet

ip

IPv4

32bit Address in 4 8bit tuples: 1.2.3.4

0 0 0 0

IPv6

128bit Address in 8 32bit tuples: ffff:ffff:...:ffff

0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000 0x0000

TCP/UDP

TCP/UDP

Flow Control (TCP)

Statefull (TCP)/Stateless (UDP) Protocols

Unicast/Multicast

TCP/UDP - Port Multiplexing

TCP/UDP - Port Multiplexing

  • Multiple endpoints on a single host
  • 16bit unsigned integer (Ranging from 0 to 65535)

engines

Trident/Chakra

Internet Explorer 11

Still in use in corporate environments

Available as embeddable Active-X control (successor will be WebView2)

Only browser for older embedded Windows Systems or SCADA Applications

On embedded systems only if you're lucky otherwise stripped down mshtml.dll

MS will drop support fir IE11 in Teams on 30.11.2020 and for MS365 on 17.08.2021

EdgeHTML/Chakra core

Old MS Edge

No longer relevant, but still around in enterprise environments

Blink/V8

Google Chrome, MS Edge, Brave, Opera

Fork of WebKit

Google Chrome usually ships with the latest experimental web APIs

Current de-facto Standard

Webkit/Nitro

Safari

Used on all MacOS and iOS devices

Used by all other browsers on iOS (apple does not allow to ship own engine)

Webkit engine can be integrated in embedded devices (QTWebKit)

The new IE https://dev.to/nektro/safari-is-the-new-internet-explorer-1df0

Gecko, Quantum/Spidermonkey

Mozilla Firefox

Currently in some kind of niche

Reason we have Rust today 🦀

Other implementations

honorable mentions

Flow Browser
Only rendering Engine, uses Spidermonkey for JS

Modabble XS
Embeddable JS Engine

Market Share

Warnign: the market share can be deciving, check depending on your target audience

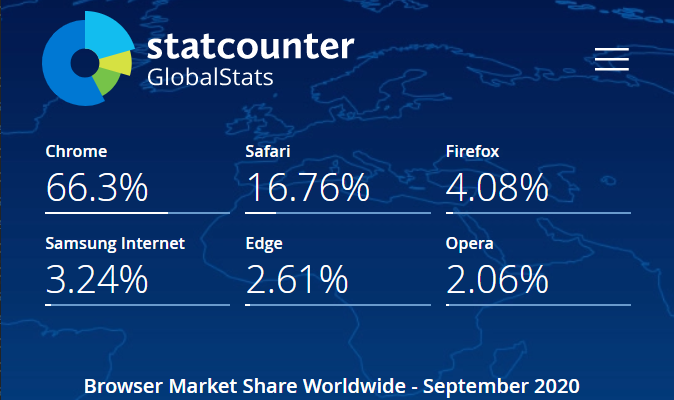

market share - world

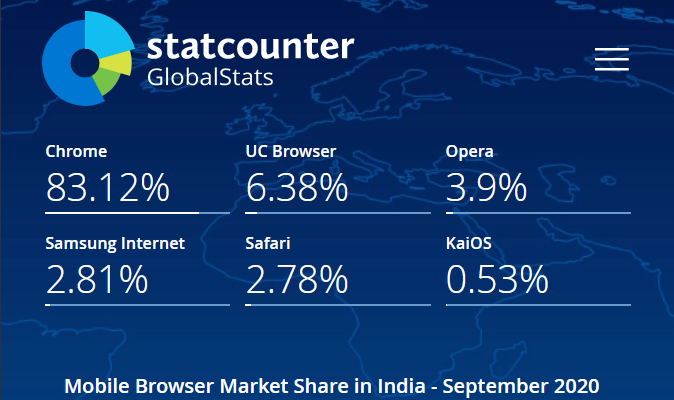

market share - india

history lesson

a brief history of web

  • All started with Tim Berners-Lee ~1989https://de.wikipedia.org/wiki/World_Wide_Web
  • Basis HyperText ~1931 https://people.ischool.berkeley.edu/~buckland/goldbush.html
  • Webserver - URL - HyperTextMarkupLanguage
  • Only 10 years later .com bubble burst
  • only static content until 1995 Netscape Navigator (Brendan Eich) designed LiveScript
  • styling came 1996 with CSS1 specification

the 90's

  • 1989 First Webserver/URL/HTML invented
  • 1995 LiveScript (which became ECMAScript)
  • 1995 PHP1 (PERL scripts)
  • 1996 CSS1
  • 1997 PHP3 (complete rewrite)
  • 1997 ES1 Javascript 1st Release
  • 1999 JSP
  • 1999 ES3 Release

the 2000's

  • 2001 IE 6 (Trident Engine)
  • 2002 Mozilla (FireFox)
  • The first JS framework/lib flood: Dojo( 2005) YUI (2006), JQuery (2006), MooTools (2007) will become a problem later Flatten Discussion
  • GWT (crosscompile) frameworks: (Vaadin 2007, Google GWT 2006)
  • ServerSide Frameworks: Ruby on Rails (2005), Django Python (2005), CakePHP (2005))
  • CMS: Wordpress (2005), Joomla! (2005), Django CMS (2005)
  • 2008 Google Chrome (WebKit)
  • 2009 ES5 released

the 2010's

  • 2012 starting of custom elements standard
  • 2013 IE 11
  • 2013 Chrome forks WebKit as Blink as new Layout Engine
  • SPAs getting big, second framework flood (let the games begin): AngularJS 2010, Ember 2011, React 2013, Vue 2014, Angular 2016, Svelte 2016, preact 2015
  • 2015 HTML5, since then living standard
  • 2015 ES6 (ES2015) start of the ES20XX naming
  • 2016 Custom Elements released
  • 2019 First PWAs
  • 2020 Edgeium (only 3 engines left, WebKit, Blink, Quantum)

oh boi...

how things have changed

  • Google removed "don't be evil" from slogan https://gizmodo.com/google-removes-nearly-all-mentions-of-dont-be-evil-from-1826153393>
  • A bookstore is the biggest cloud provider https://www.channele2e.com/channel-partners/csps/cloud-market-share-2020-amazon-aws-microsoft-azure-google-ibm/
  • Microsoft has a decent browser https://www.microsoft.com/en-us/edge
  • Apple is the new Internet Explorer and built a walled garden https://arstechnica.com/information-technology/2015/06/op-ed-safari-is-the-new-internet-explorer/https://arstechnica.com/gaming/2020/08/impending-apple-ban-an-existential-threat-to-the-unreal-engine-epic-says/
  • Mozilla struggles https://thenextweb.com/insights/2020/08/11/mozilla-firefox-layoffs-250-employees/

the past... simple and robust

  • Linux
  • Apache
  • MySQL
  • PHP/Perl

All you needed

Texteditor/Netscape Composer/MS Frontpage

Webspace

FTP

What happened?

modern web development

"If you just spin up an instance of Golden Goose on Elastic Clownshoes, then clone the flugelhorn inside a Bangwoosh container, connect to the Zonk using Zonk -commit -rj -hgs.plonk, you're good to go. Chrome only of course"
- @brucel

web development is an overengineered mess

a typical web application

  • Serverless, AWS, Azure, GCP, Cloudflare, K8s, K3s, docker, Terraform
  • Lambdas, Fargate, Elastic Lode Balancing
  • DynamoDB, Spanner, Bigtable, Hadoop, NoSQL
  • Polyglot Application Frameworks, Microservices, node.js
  • Javascript, Typescript, Babel, Webpack, Rollup, Snowpack
  • (p)react, Angular, svelte, Vue

and for what?

back to the course goals

Overview of existing technologies in webengineering

Wild ride through heaps of technologies

You should be able to make a differentiated assessment to provide a solution for the task hand - you're probably not netflix or uber
